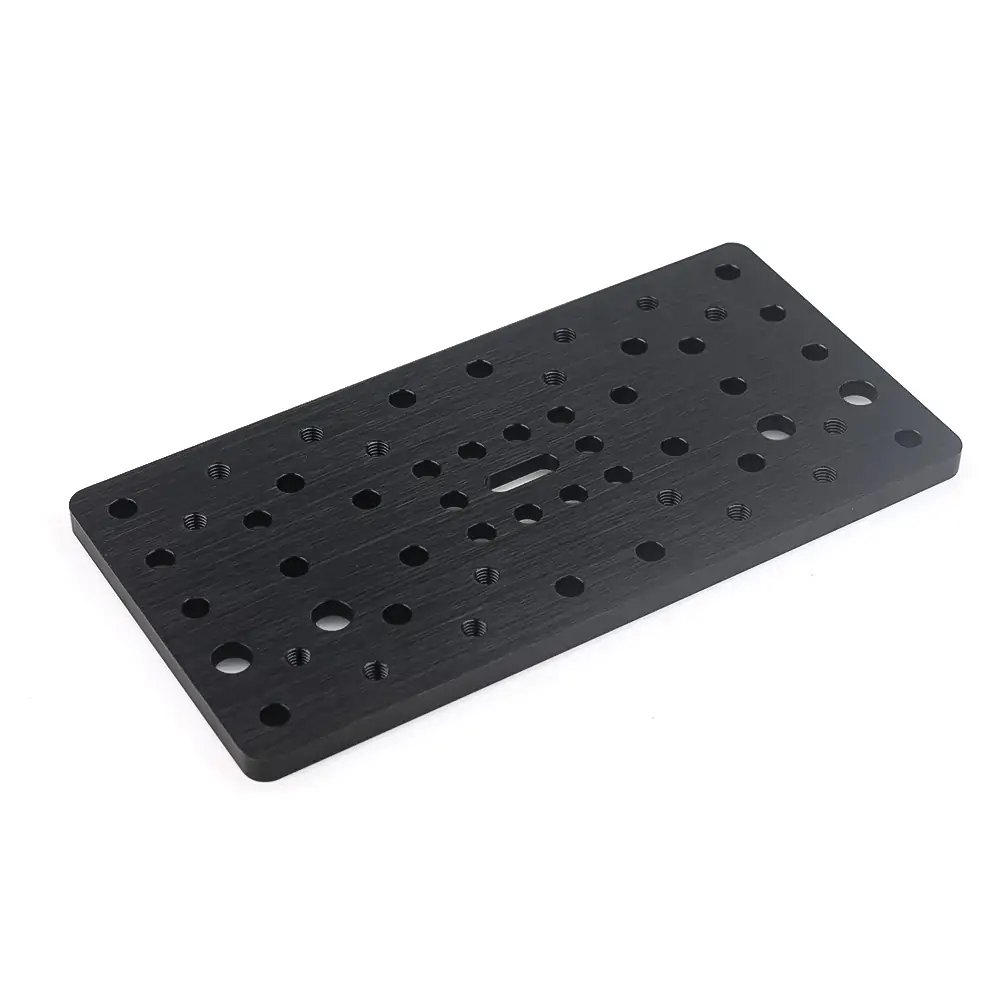

C-Beam Gantry Plate – Double Wide

US$10.15US$676.00

This C-Beam Double Wide Gantry Plate is designed to provide a stronger, more stable platform for your Builds.

The extra wide wheel stance and ability to add up to 8 Mini V Wheels ensures this plate will be strong enough for most applications.

Clear
SKU: PL0016 Categories: , Tags: ,

Description

This C-Beam Double Wide Gantry Plate is designed to provide a stronger, more stable platform for your Builds.

The extra wide wheel stance and ability to add up to 8 Mini V Wheels ensures this plate will be strong enough for most applications.

Designed specifically to provide a much stronger Z Axis system but is modular enough to be used on any axis.

Flush, clean finish with wheels that ride on the internal V tracks of C-Beam.

Specifications:

  • Model: PL0016
  • Material: 6mm thick Aluminium
  • Dimensions: 155 mm Length x 77.5 mm Width
  • Mates at 90 degrees to another plate allowing for the best in an XY and Z system
  • Colour: Brushed black anodised for a finished look
  • Recessed screw pockets ensure flush mounts
  • Includes pre-tapped mounting holes for a clean 90 degree mounting solution
  • Adjustable end holes allow for creating a very accurate and reliable double Nut Block system
  • Centre recess allow for single nut block mounting
  • Up to 8 wheel mounting configuration for secure and precise rail lock in





Sold in the following quantitiy:

Unit Price Quantity Total
  $6.76 100 pcs $676.00
  $8.20 25 pcs $205.00
  $10.15 1 pcs $10.15

Additional information

Weight 0.17 kg
Dimensions 20 × 20 × 15 cm
